| Air Inlet | 19 mm (3/4″) |
| Inlet | 76 mm (3″) |
| Outlet | 76 mm (3″) |
| Suction Lift | 5.5 m Dry (18′) 9.45 m Wet (31′) |
| Max. Flow Rate | 878 lpm (232 gpm) |
| Max. Size Solids | 10 mm (3/8″) |
| Height | 810 mm (31.9″) |
| Width | 432 mm (17.0″) |
| Depth | 279 mm (11.0″) |
| Est. Ship Weight | Aluminum 53 kg (116 lbs) |
3″ NTG80
Specifications

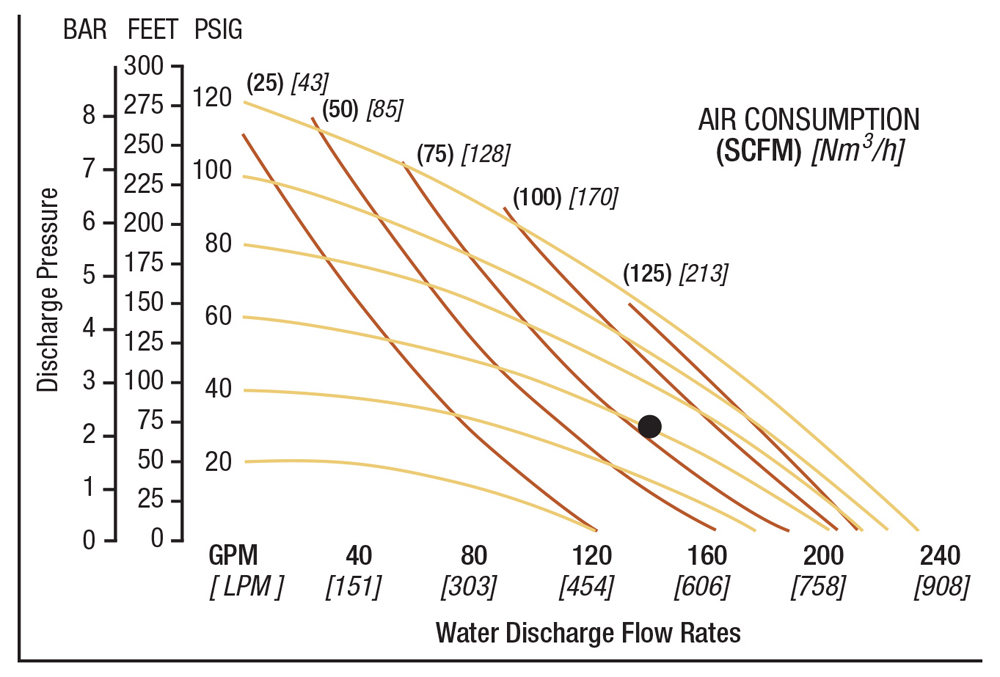

H2O flow rates listed.
For best performance, run pump at “center of curve” protocol.
Example: To pump 530 lpm (140 gpm) against a discharge pressure head of 2.1 bar (30 psig) requires 4.1 bar (60 psig) and 136 Nm3/h (80 scfm) air consumption (See dot on chart).
Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.
Teflon Diaphragms: reduce flow by 25%
