| Air Inlet | 6 mm (1/4″) |
| Inlet | 25 mm (1″) |
| Outlet | 19 mm (3/4″) |
| Suction Lift | 5.18 m Dry (17′) 9.45 m Wet (31′) |
| Max. Flow Rate | 132 lpm (35 gpm) |
| Max. Size Solids | 3.2 mm (1/8″) |
| Height | 279 mm (11.0″) |
| Width | 267 mm (10.5″) |
| Depth | 185 mm (7.3″) |
| Est. Ship Weight | Aluminum 12 kg (26 lbs) 316 S.S. 11.24 kg (25 lbs) |

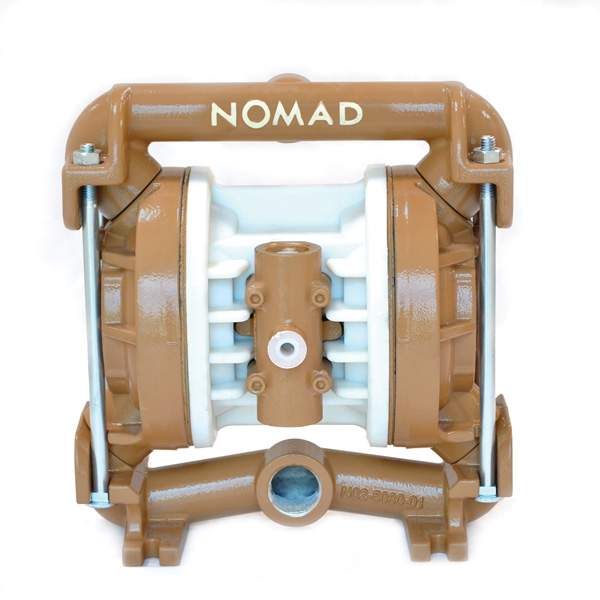

1″ NTG25
Specifications

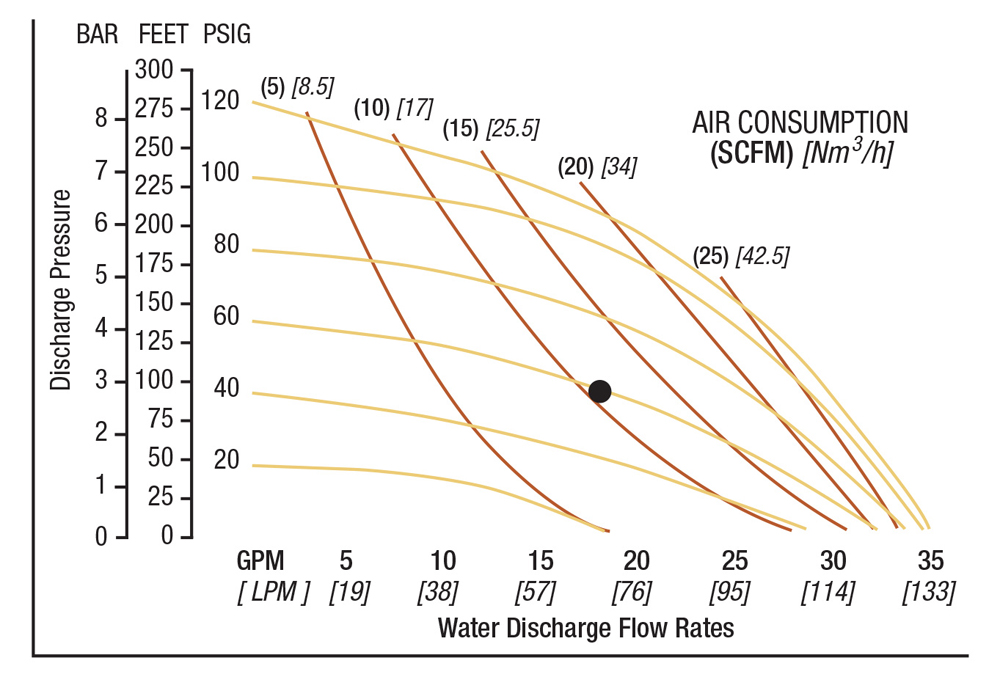

Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation parameters will fall in the center of the pump performance curve.
Example: To pump 68.1 lpm (18.0 gpm) against a discharge pressure head of 2.7 bar (40 psig) requires 4.1 bar (60 psig) and 18.7 Nm3/h (11 scfm) air consumption (See dot on chart).
Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.
Teflon Diaphragms: reduce flow by 25%
